JAANHUEI P490 Plastic Lever Acting Drum Barrel Pump PP Manual Drum Barrel Pump Patented in USA Blue 53.5 inches (136 cm) PP Spout 11.8 oz. (350 cc) Per Stroke for 5; 15; 30; 55 gal

Description

Highlights:
1.★Ideal for thicker liquids such as machine oil, alcohol, diesel fuel, kerosene, lubricant and dilute liquids. Easy to assemble.
2.★Three holes to adjust force point. Using in more thicker liquids, adjust more front point. Easy and save your time.

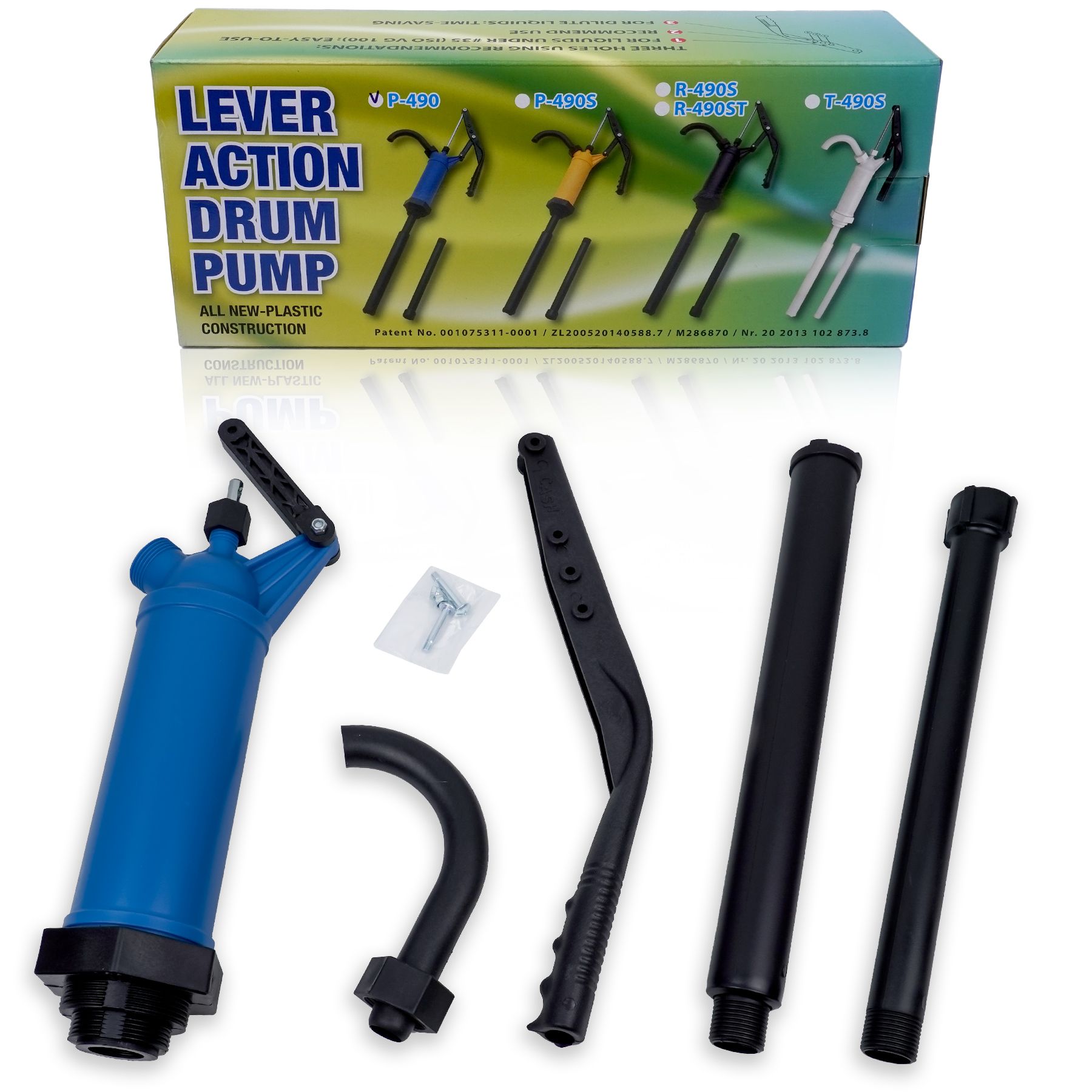

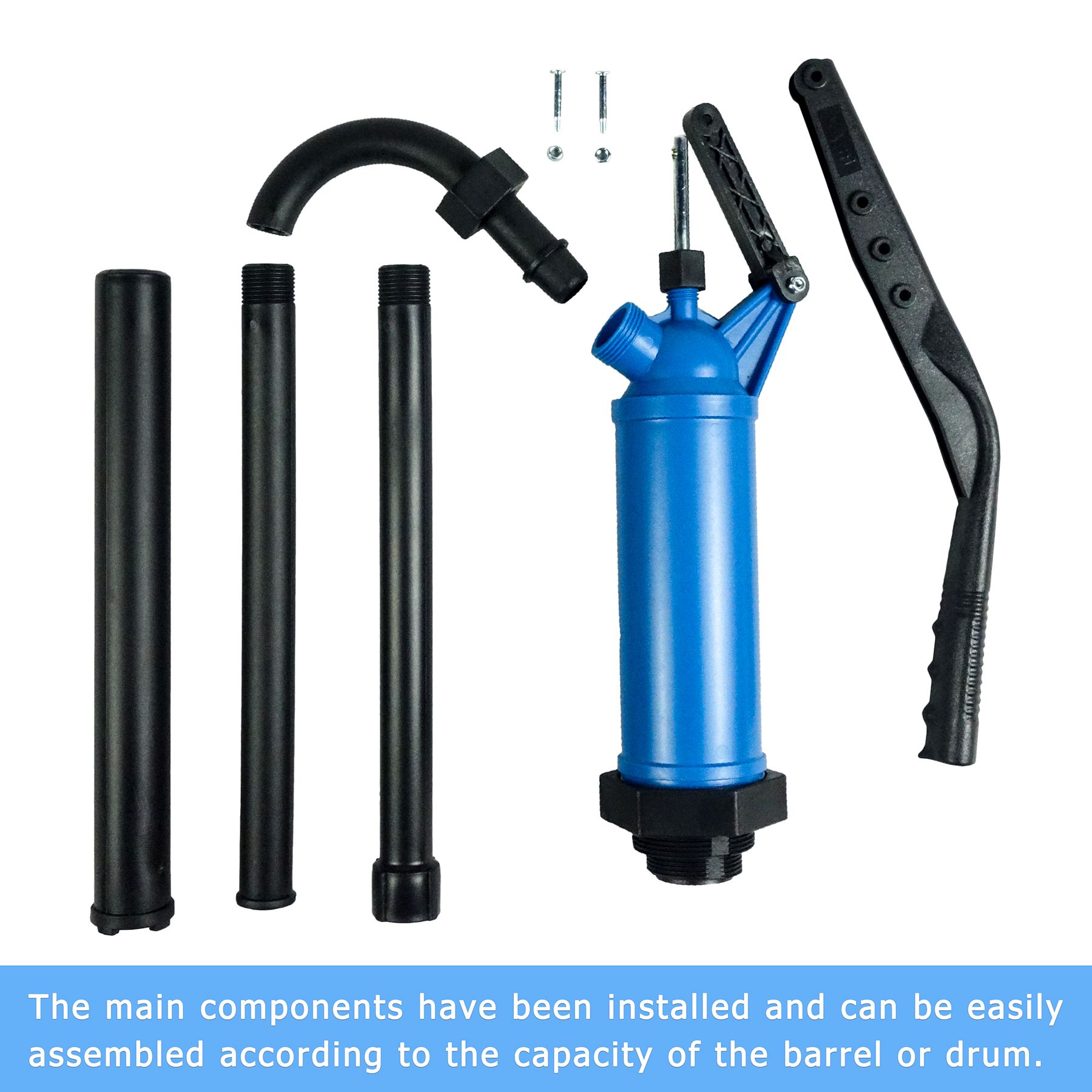

3.★Available Gallon Drum: 5, 15, 30, 55. Capacity: 11.8 oz. (350cc) per stroke. The main parts have been installed, and you can easily assemble according to the capacity of the barrel.
4.★Made in Taiwan. Patented in Taiwan, USA, China, European Union’s Country. During this difficult period, if you have any question of order, please feel free to contact us.
5.★Premium Quality-You can Trust. Made of High Quality and Strong PP, all new-plastic construction, lighter than cast iron drum pump. Ideal Choice for your need.

Details:

P490 PP Plastic Lever Acting Drum Pump

★Lightweight and easy to assemble Drum Pump. It is a good choice to pump light liquids and Kerosene.

Features:

*Made of High Quality Materials:
-P490JH Plastic Lever Acting Drum Pump is made of high quality Polypropylene body; PP telescopic tube; steel rod; PP piston; PP spout; PP Handle.
-Which is light weight but strong. Easy to carry.
-The wall is thicker than previous generation of the suction pipe.

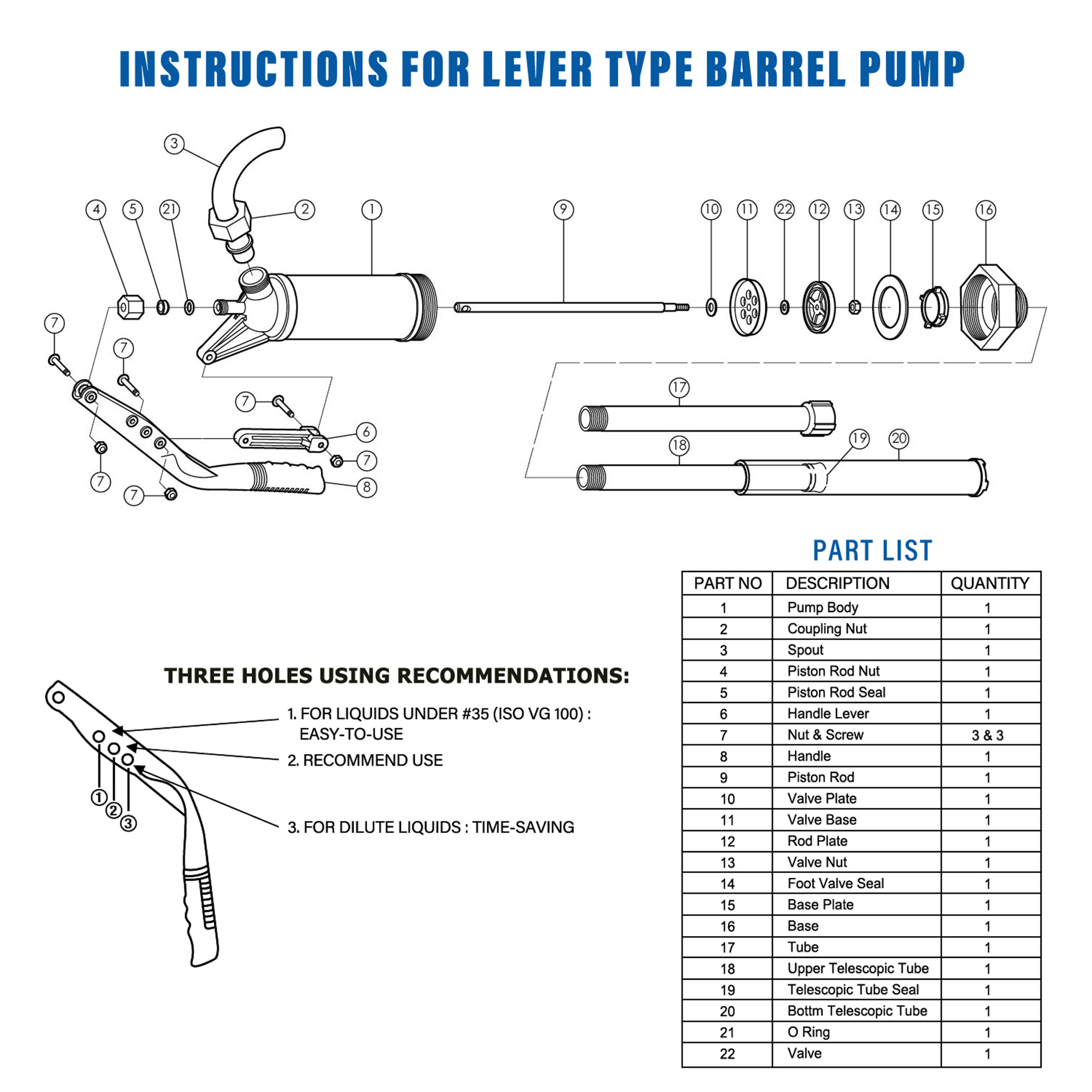

-If you want to install the pump on Barrels or disassemble from Drums; please twist the hexagon Base(Part 16) not the Pump Body(Part 1).
-For the best performance; the Base(Part 16) is tied with a screw. Please do not disassemble the Base(Part 16) from the Pump Body(Part 1).

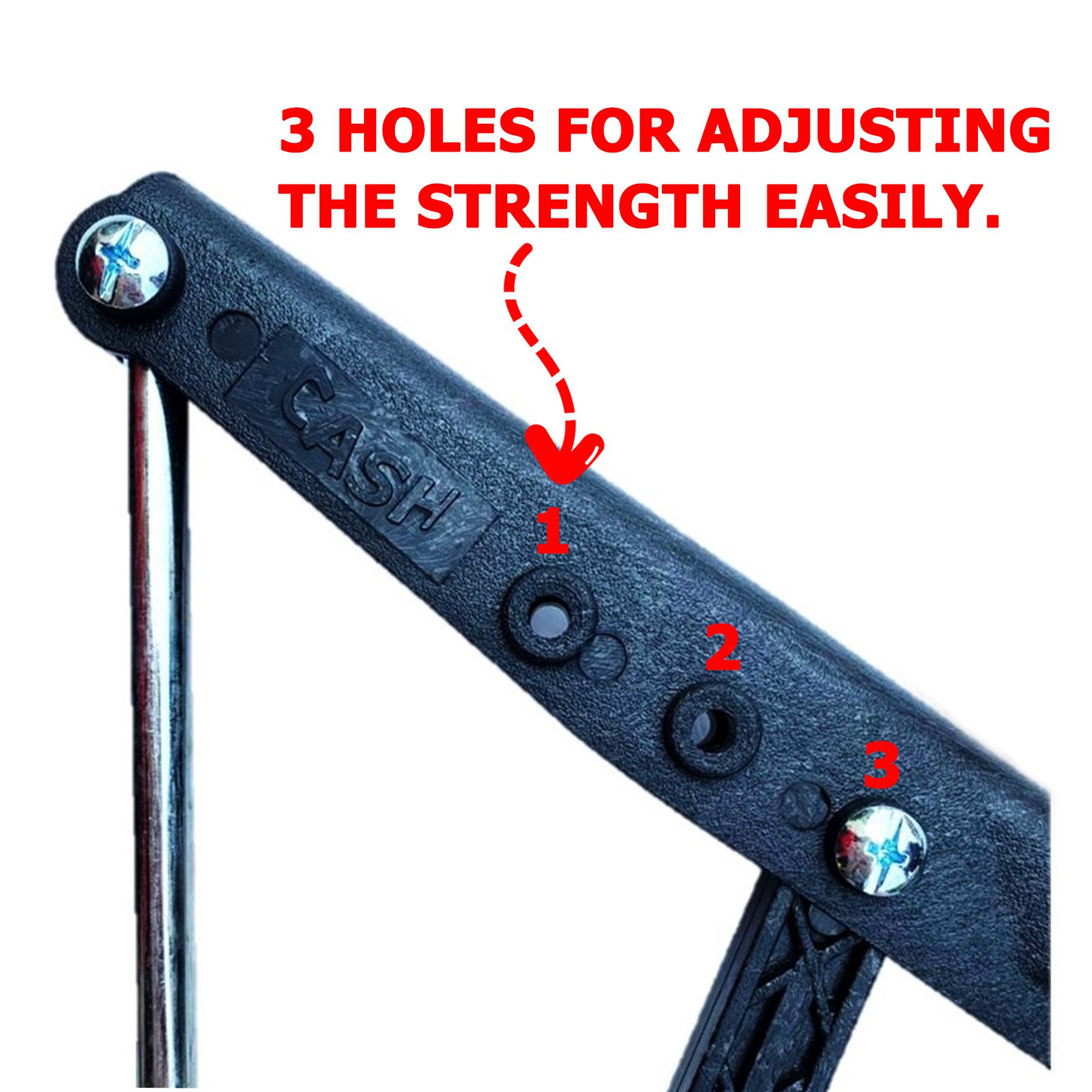

*Multi Viscosity Hole for Selection:
-According to the viscosity of the extracted liquid; the position of the shaft lock on the grip is adjusted; which is normally used in the middle; and the thicker lock is in the first hole.
-Adjustable flow rate dispenses approx 8; 10 or 12 oz per stroke.

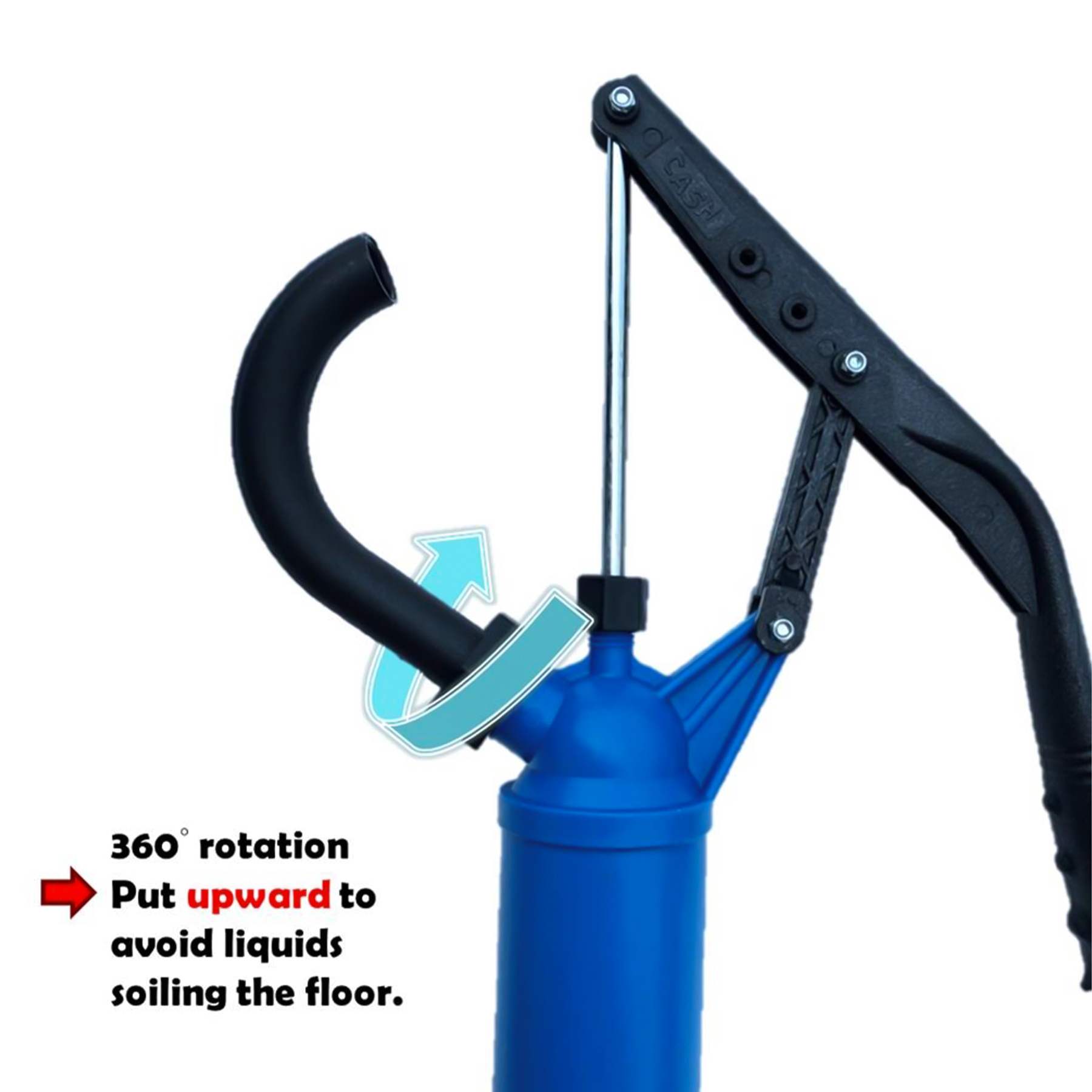

-If you want to match output hose; the outlet pipe diameter is 23 mm.

*Suitable for Various Sizes of Barrels:

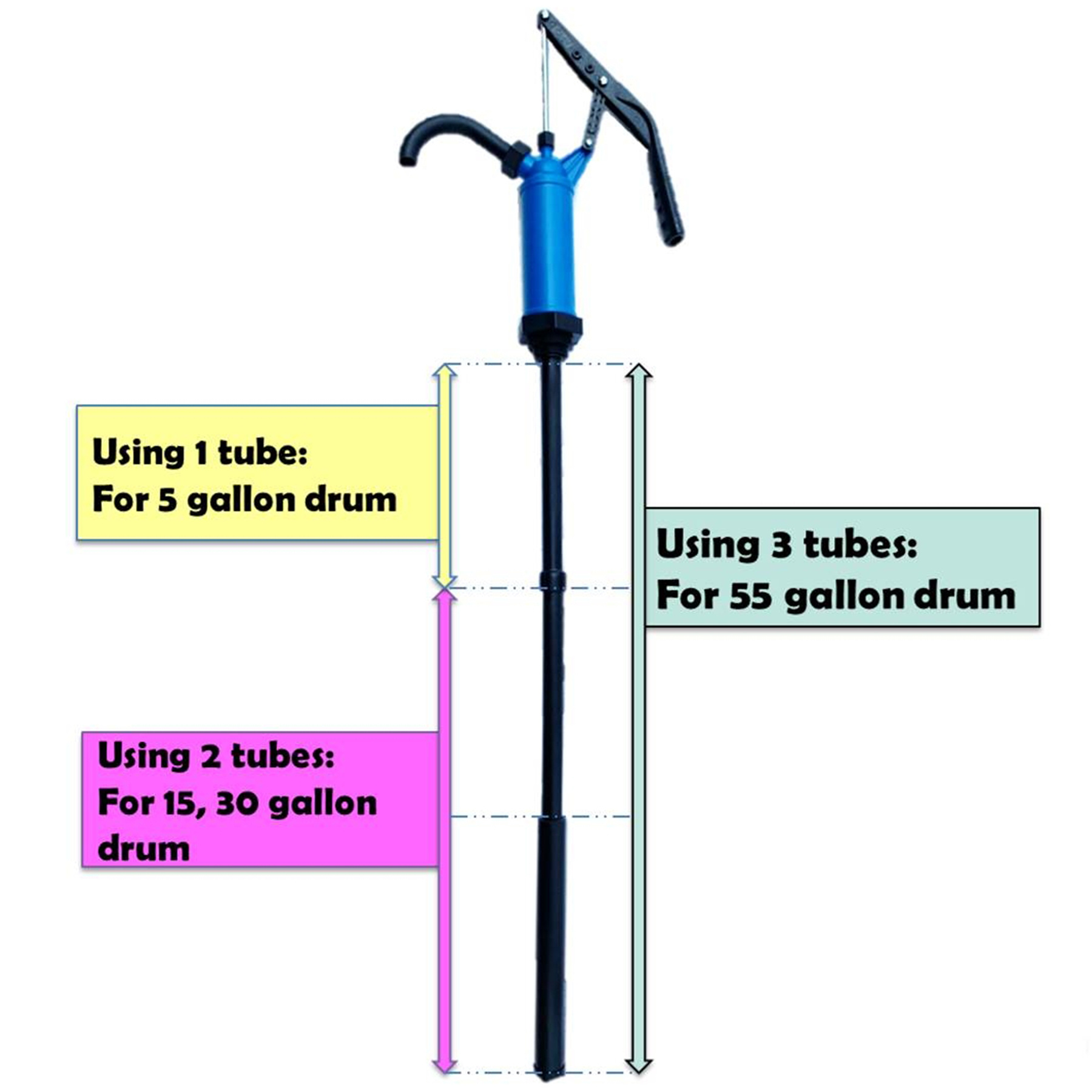

-Extend the tube according to the gallons; a total of three sections can be assembled.

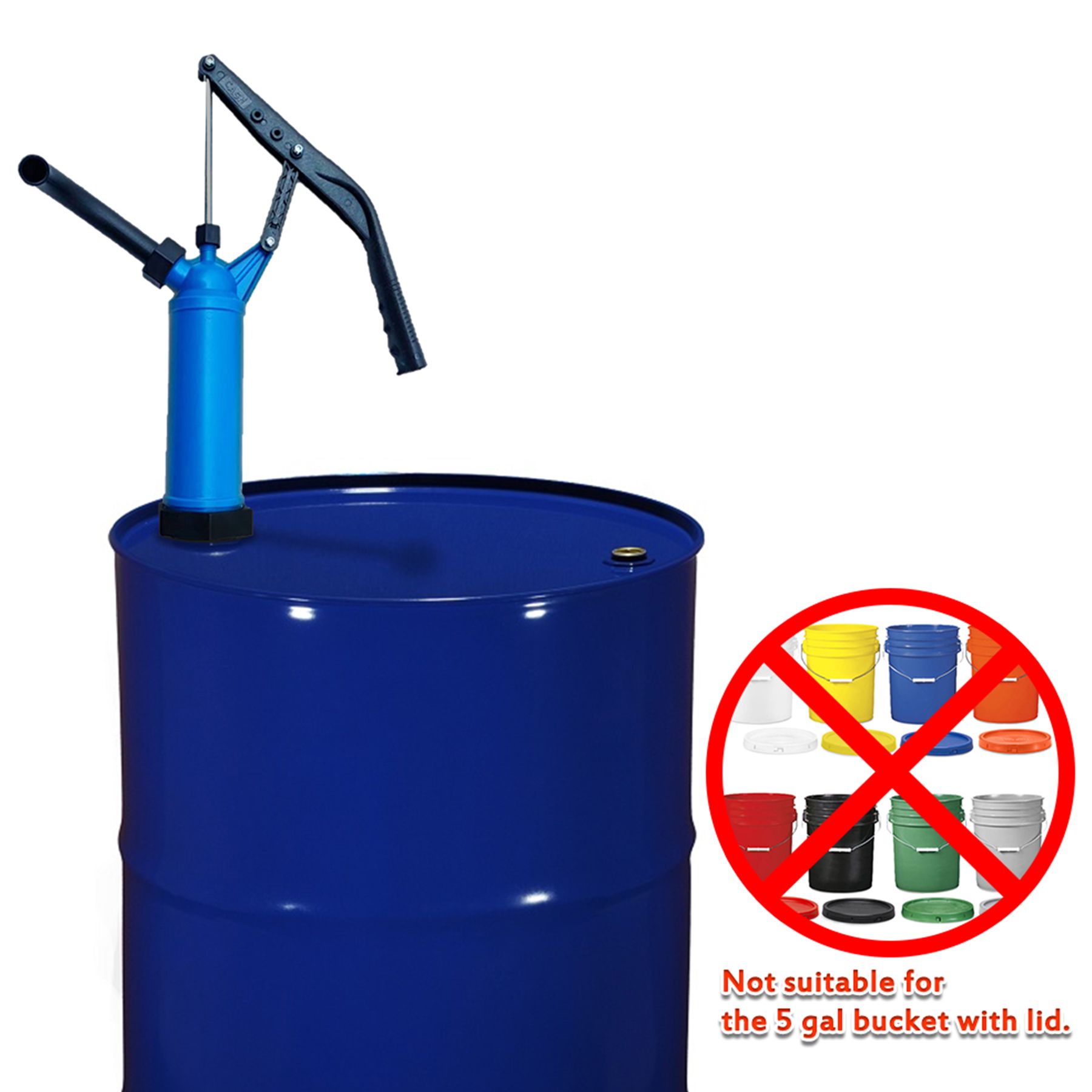

-Ideal for Gallon Drum: 5; 15; 30; 55 gal.
-Bung Adapter:Polyethylene with 2 inches NPT Thread.

*Applicable liquids:
-It is great for pumping machine oil; alcohol; diesel fuel; kerosene; lubricants.
-Do not use:Gasoline; Acids; Alkalis; Drinking Water and Fluid Viscosity is higher than ISO VG100.
-Not suitable for the rainwater recovery system.

Specifications:
-Length: Approx 53.5 inches (136.0 cm)
-Width: Approx 13.3 inches (34.0 cm)
-Diameter of the suction tube: Approx 1.57 inches (4.0 cm)
-Pipe Wall Thickness: Approx 0.078~0.157 inches (0.2-0.4 cm)
-Made in Taiwan; High Quality.
