Description
Highlights:

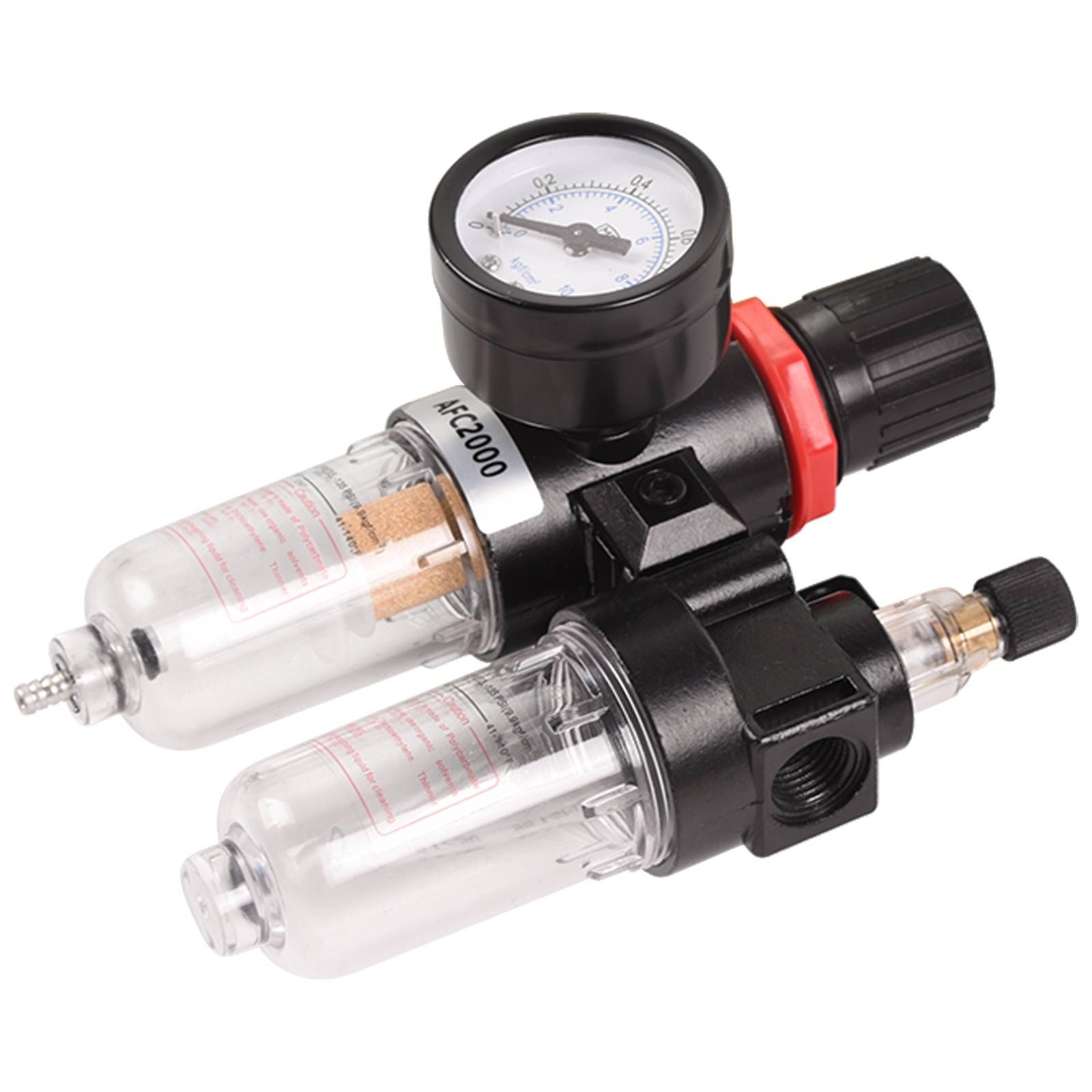

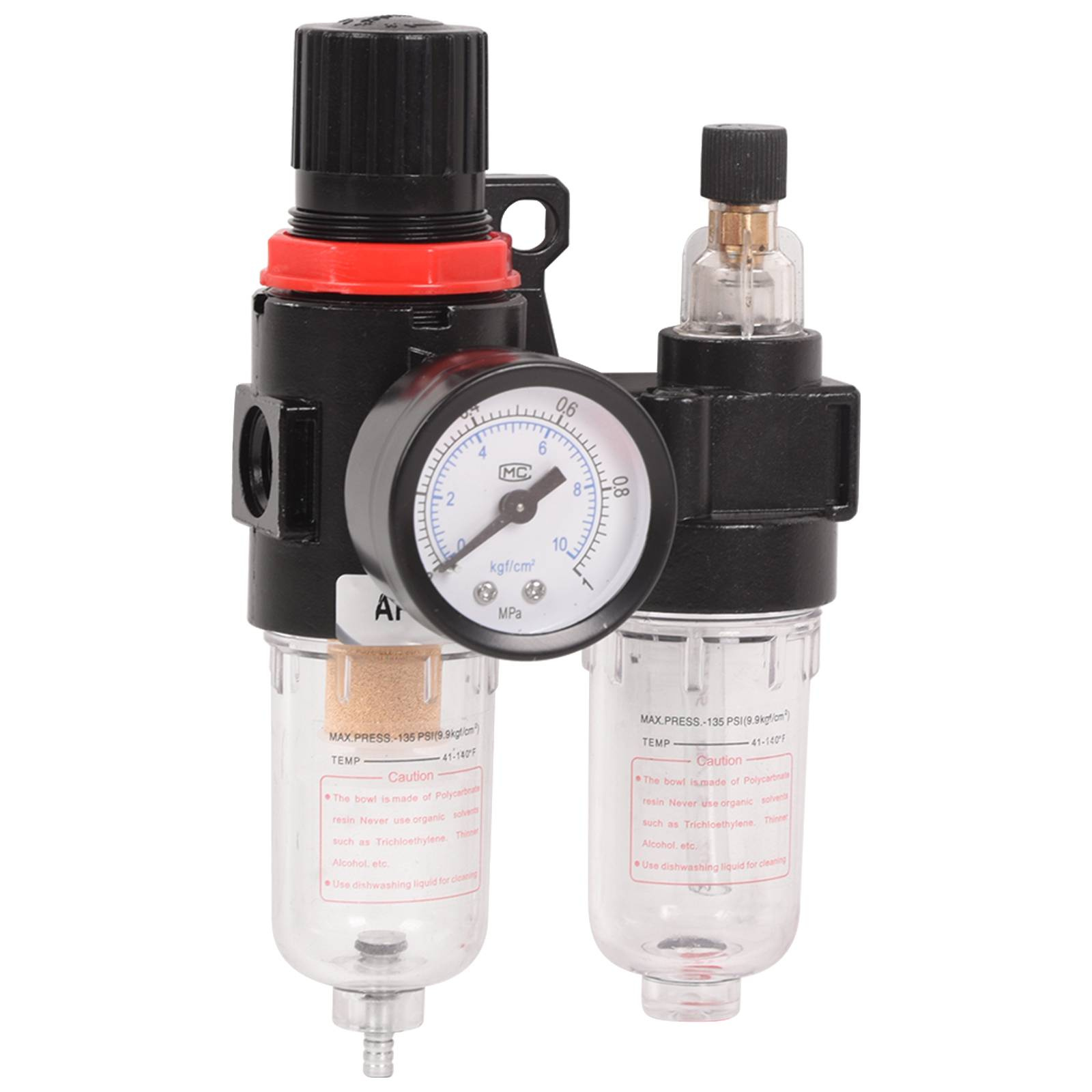

1.Pneumatic Twin Air Filter With Regulator Trap
2.The water oil separator can be directly connected with paint spray gun
3.It is applicable to spray guns, pneumatic tools and hoses
Details:
Specification:
Product Name: Air Source Treatment Filter
Model: AFR-2000 AL-2000
Air Inlet Size: 1/4" inch NPT
Material: Metal, Plastic
Working Medium: Air
Working Pressure: 90 PSI
Max. Pressure: 9.9kgf/cm2(135PSI)
ADJ.Range: 0.5-9.0kgf/cm2
Thread Diameter: 12mm/ 0.47"

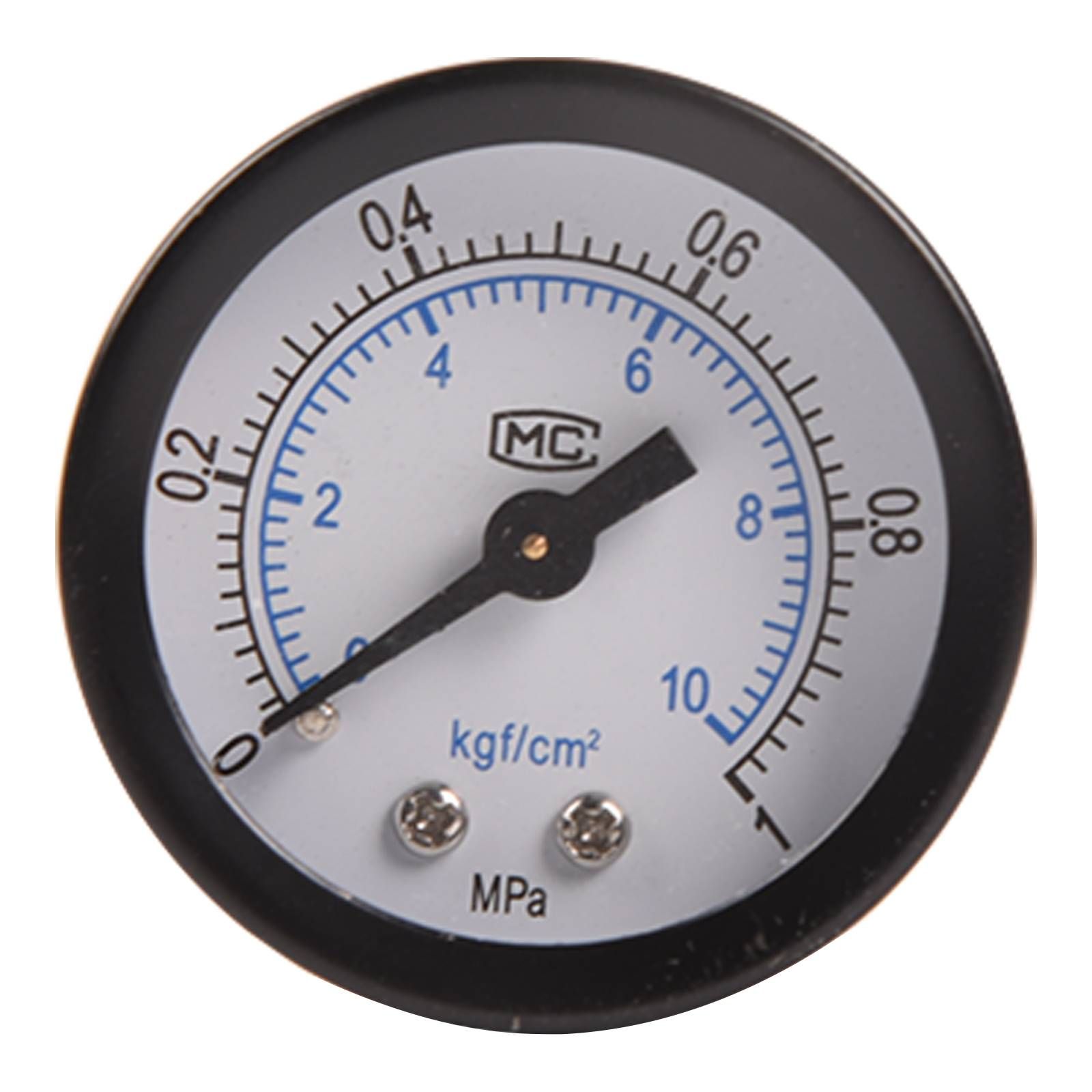

Pressure Gauge Range: 0-1Mpa/ 0-10kgf/cm2
Total Size: 155 x 90mm / 6.1" x 3.5"(L*W);
Pressure Gauge Size: 41 x 25mm/ 1.6" x 0.98"(D*H)
Temperature Range: – 40 – 140F
Color: Black, Clear
Weight: 354g
Package Dimension: 19*9.5*6cm(7.5*3.7*2.4inch)
Package Weight: 400g
Package Include:
AFR-2000 AL-2000 Filter1 x Pressure Gauge
