Portable Hydraulic Cylinder Jack Ram Multi-Section Hydraulic Ram Cylinder Lifting Jack

Description

Details:

50T 2"

[������ ���������� ��������][Model]: RSC-501; [Capacity]:50T/110231 LBS; [Storke]: 50mm/2inch; [Outside Diameter]: 124mm/4.88inch; [Inner Diameter]: 98mm/3.86inch; [Oil Storage]: 376cm³; [Effective area]:75.3cm².

[�������������� ��������������������������]Easy to use, the hydraulic ram cylinder jack can retract automatically after releasing the oil return value of the hydraulic pump without any blockages.

[�������� �������� ��������]The hydraulic jack should be used with hydraulic pumps and suitable for single-action ones.

[������������ ��������������]This hydraulic cylinder jack has a smooth round, made of heavy-duty metal construction,the product surface is painted to prevent scratches and corrosion.

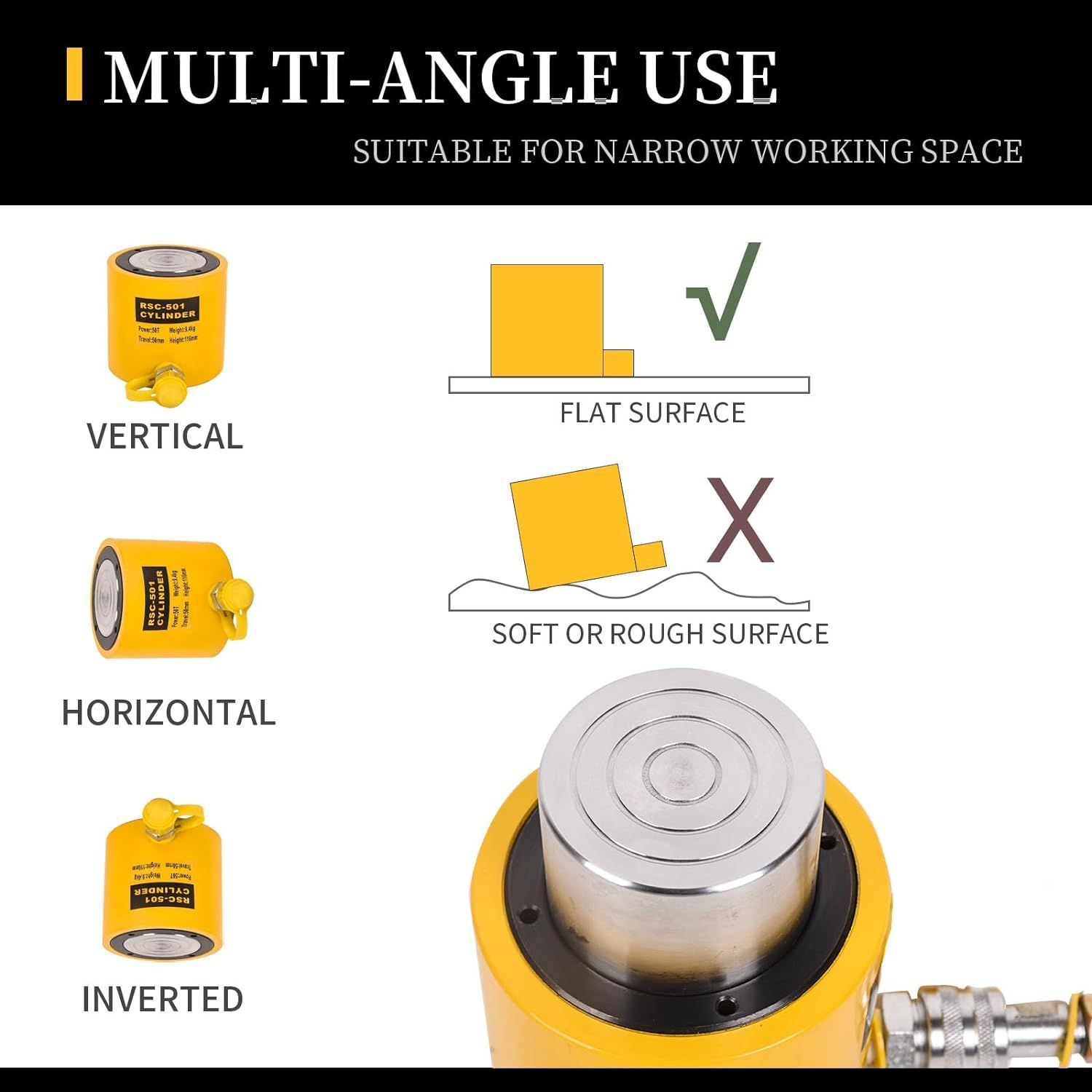

[�������� ������������������������]Our Hydraulic Ram Cylinder Jack is used in power, chemical, steel, bridges, machinery and other industries. Suitable for vertical, horizontal and inverted directions, but cannot be tilted use. In order to operate correctly, all cylinders need to be connected to a solid flat lifting surface rather than soft or rough surface. Home car type is not recommended.

Specifications:

lt is easy to carry there are two holes on the surface of the oil vat for stability.

Plunger eiper reduces contamihation.Exteding cylinder life.

Light weingt,low profile design for use in confined spaces.

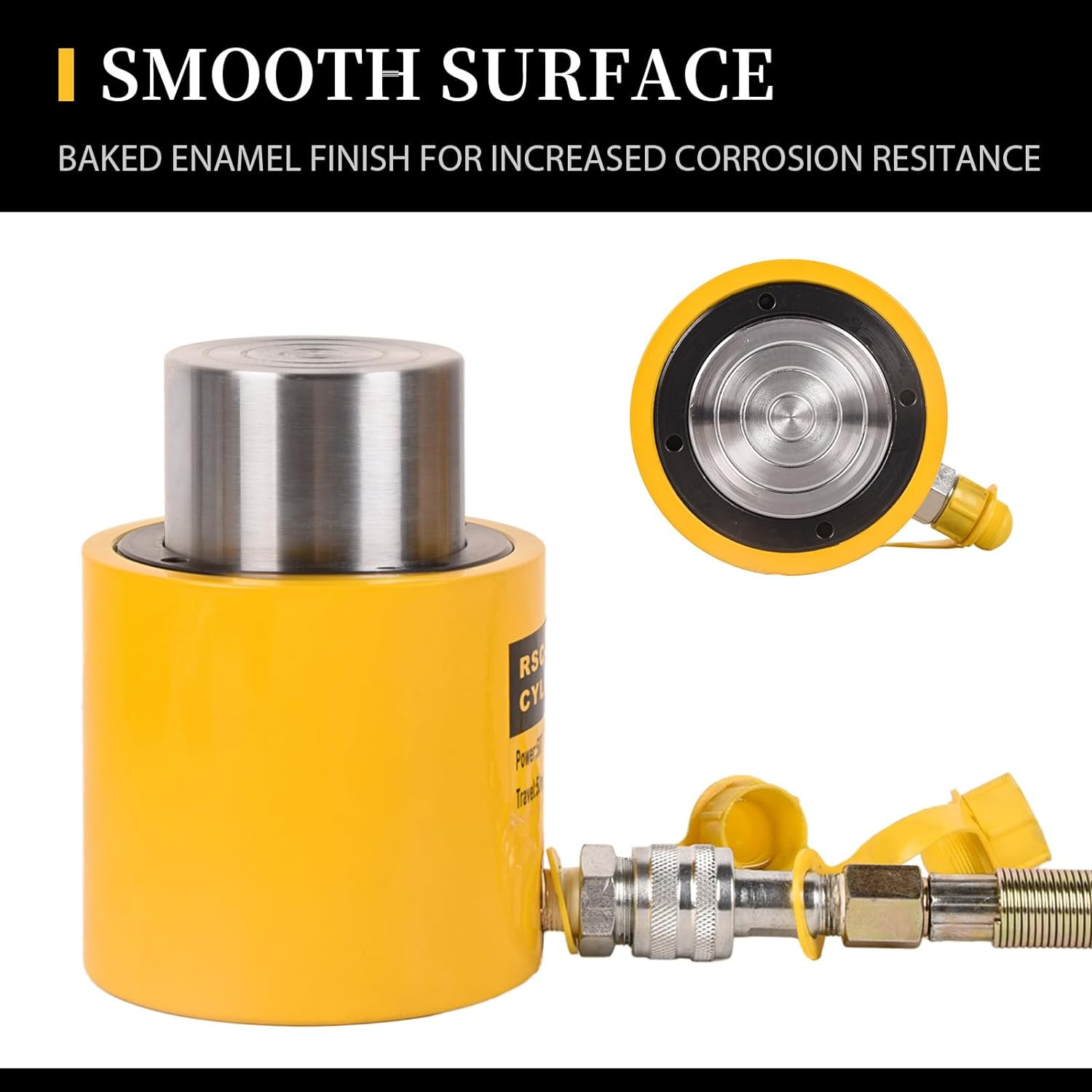

Baked enamel finish for increased corrosion resitance.

Capacity: 50T / 110231 LBS

Ram Stroke: 50mm / 2inch

Total Height: 166mm / 6.53inch

Outside Diameter: 124mm / 4.88inch

Inner Diameter: 98mm / 3.86inch

Diameter of Main Shaft: 80mm / 3.15inch

Effective area: 75.3Cm²

Oil Storage: 376cm³

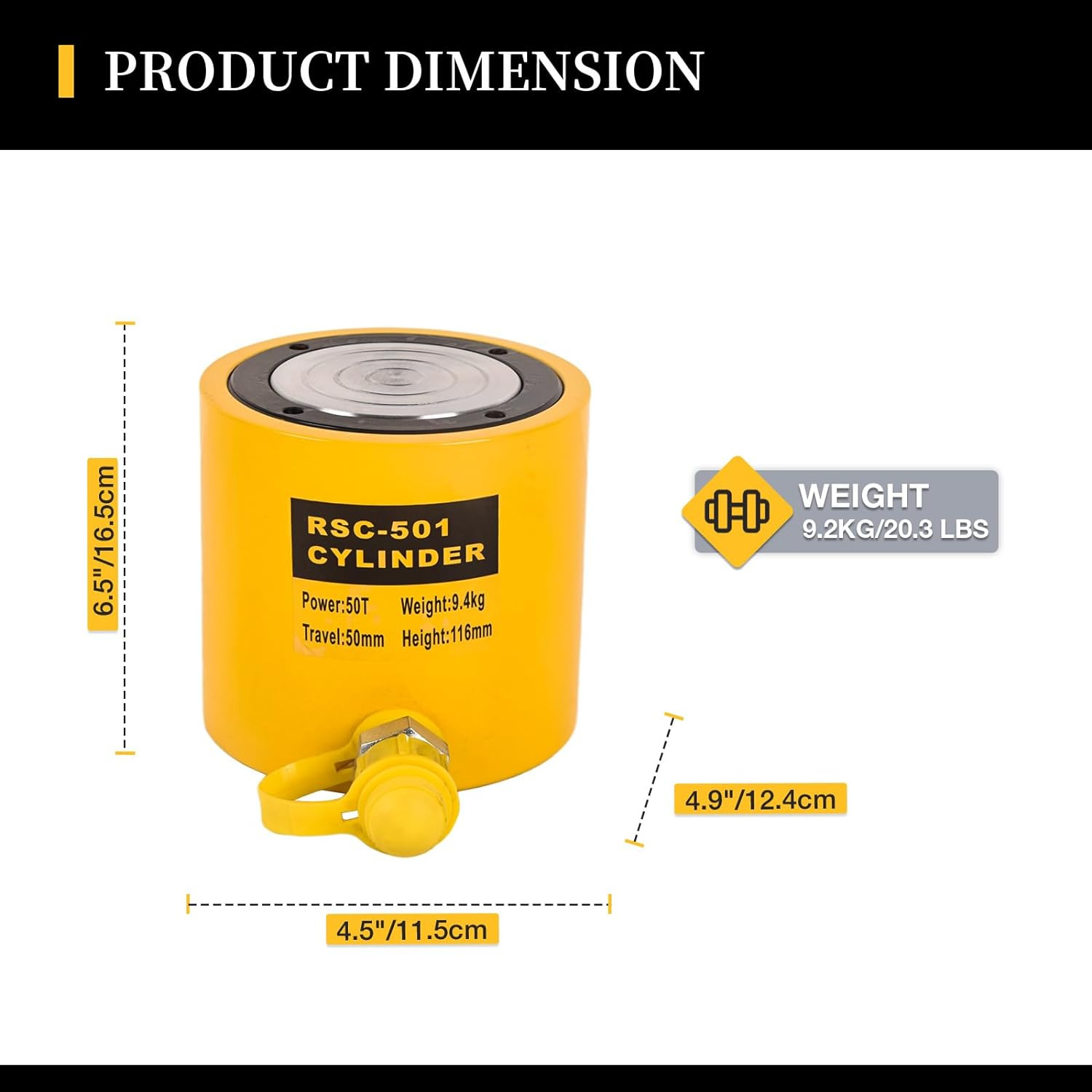

Item Dimension: 6.5 x 4.9 x 4.5 inch / 16.5 x 12.4 x 11.5 cm

Item Weight: 9.2 kg / 20.3 lbs

Body Height: 116mm / 4.57inch

Package Dimension: 8.2 x 5.9 x 6.1 inch / 21 x 15 x 15.5 cm

Package Weight: 9.5 kg / 20.9lbs

1 x Hydraulic Cylinder Jack
